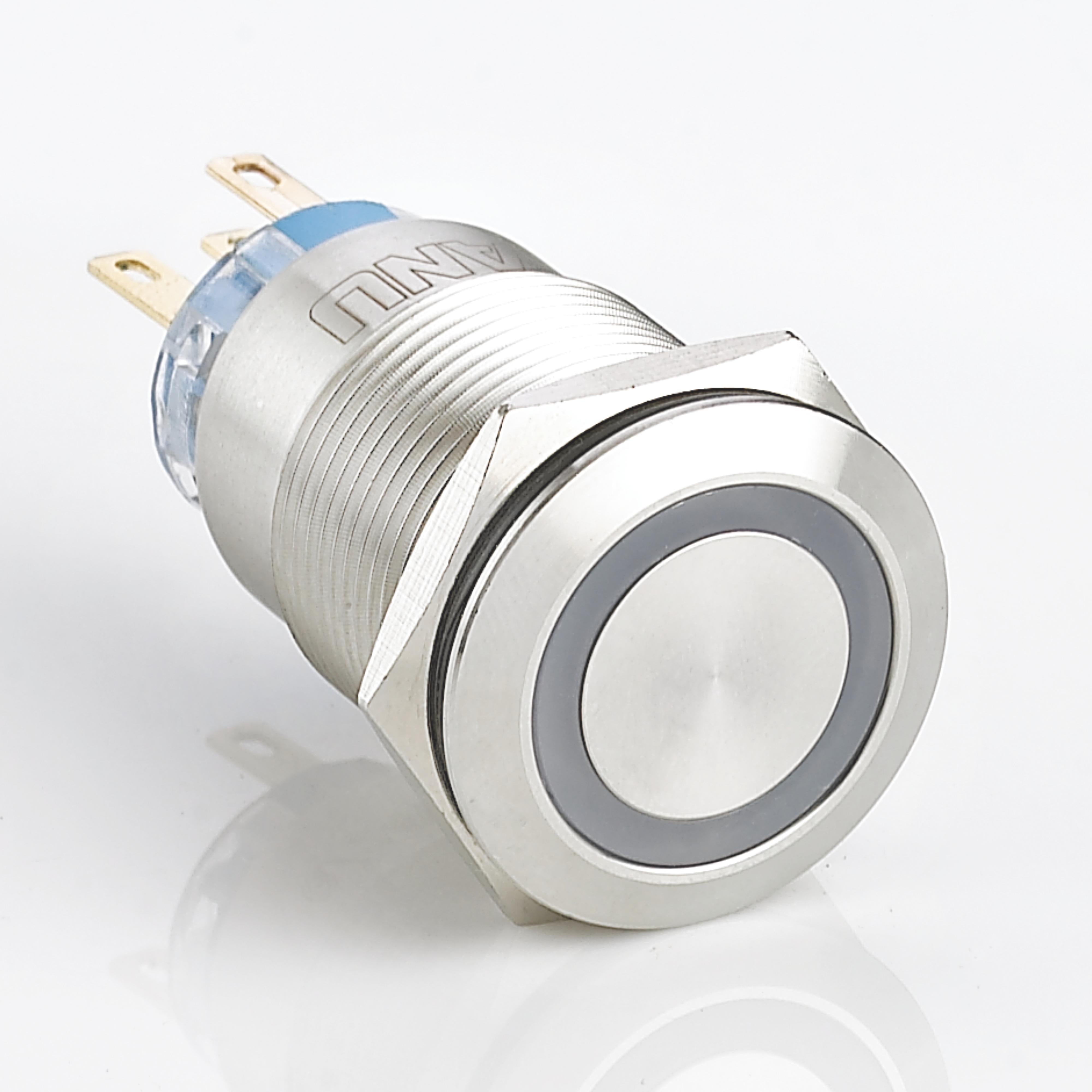

19mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed
- $3.74
- $3.74
- Unit price
- per
Subtotal:
$3.74
Couldn't load pickup availability
Shipping
Free standard shipping on orders over $50.
Free express shipping on orders over $200.
Free Return
You have a 30-day return window.
Description
xFeatures
- IP67 Waterproof
- IK10 Vandal Resistant
- Silver plating of contacts: 3u
- Special brushed stainless steel，beautiful appearance
- Conforms to IEC60947-5-1 and GB14048.5 standards
Contact Ratings
| Rated insulation voltage | 250V | |||||
| Heating Current lth | 3A | |||||
| Rated Voltage | 12V | 24V | 110V | 220V | ||
| Rated Current | AC 50/60Hz | Resistive Load | -- | -- | 5A | 3A |
| Inductive Load | -- | -- | 3A | 2A | ||
| DC | Resistive Load | 5A | 5A | 1A | 0.5A | |
| Inductive Load | 2A | 2A | 0.2A | 0.1A | ||
| Contact Material | silver-plated | |||||
Technical Parameter
| Maximum Voltage | 250V AC/DC |
| Thermal Current | 3A |
| Minimum Applicable Load | 5V AC/DC, 1mA |
| Terminal Style | .110" Solder / Quick Connect |
| Operating Temperature | -25° to +55°C |
| Operating Humidity | 45 to 85% RH |
| Contact Resistance | 50mΩ maximum |
| Insulation Resistance | 100MΩ minimum (500V DC megger) |
| Vibration Resistance | 10 to 55Hz, amplitude 1.2mm p-p |
| Electrical Life | 100,000 cycles minimum (at full rated load) |
| Mechanical Life | 1,000,000 cycles minimum |
| Dielectric withstand voltage | 2,000V AC, 1 min. between live/dead part and terminals of different poles; 1,000V AC, 1 minute between terminals of the same pole. |
| Soldering Temperature | 20W, 5 seconds / 260°C, 3 seconds |
LED Lamp
| Lamp Type | AC/DC universal LED lamp |
| Rated Voltage | AC/DC 6/12/24/36/48/110 Volt; AC 220 Volt. |
| LED Color | Red, Green, Yellow, Blue, White |
| Life | 40,000 hours |
* If you need a one-way DC LED lamp or other rated voltages, please contact customer service
