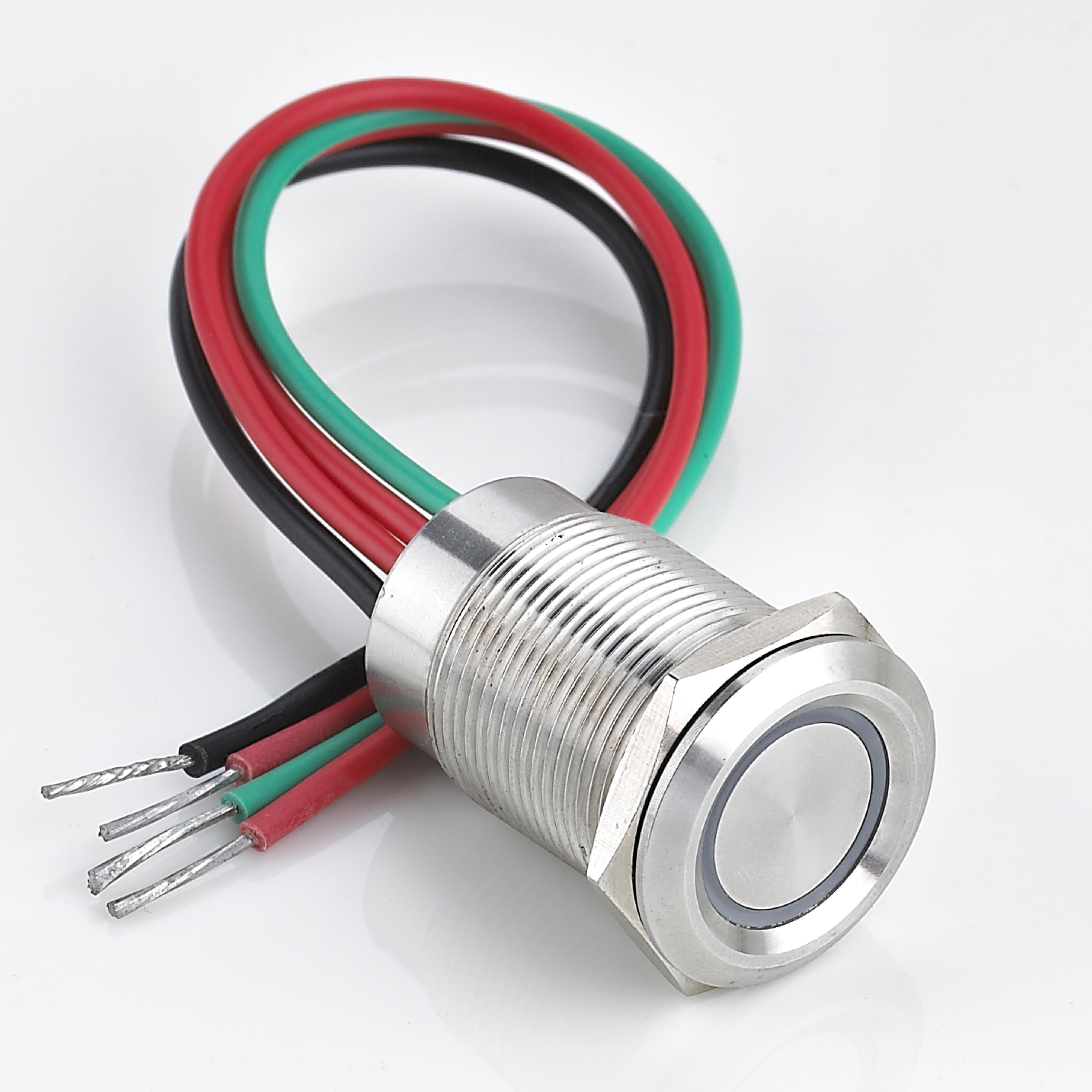

19mm capacitive touch switch Momentary Ring LED Stainless Steel 1 Normally-Open

Electrical Specifications

• Max current/ voltage rating with resistive load: AC/DC 1A 24V
• Switch resistance ON: 10Ω max.
• Switch resistance OFF: 5MΩ min.
• Life expectancy: 50 million cycles
• LED consumption: dot illuminated, 10mA; ring illuminated, 20mA

Environmental Specifications

• Sealing: IP68 per IEC 60529, IP69K per DIN 40050-9 (switches mounted on panel)
• Vibration resistance: 10-500 Hz/10 g per IEC 60068-2-6
• Operating temperature: -40℃ to +75℃ （-40℉ to +167 ℉）
• EMC compatibility according to EN 61058-1 for the whole range
• EMC compatibility according to EN 61000-4 & EN61000-6-2 for 1A
