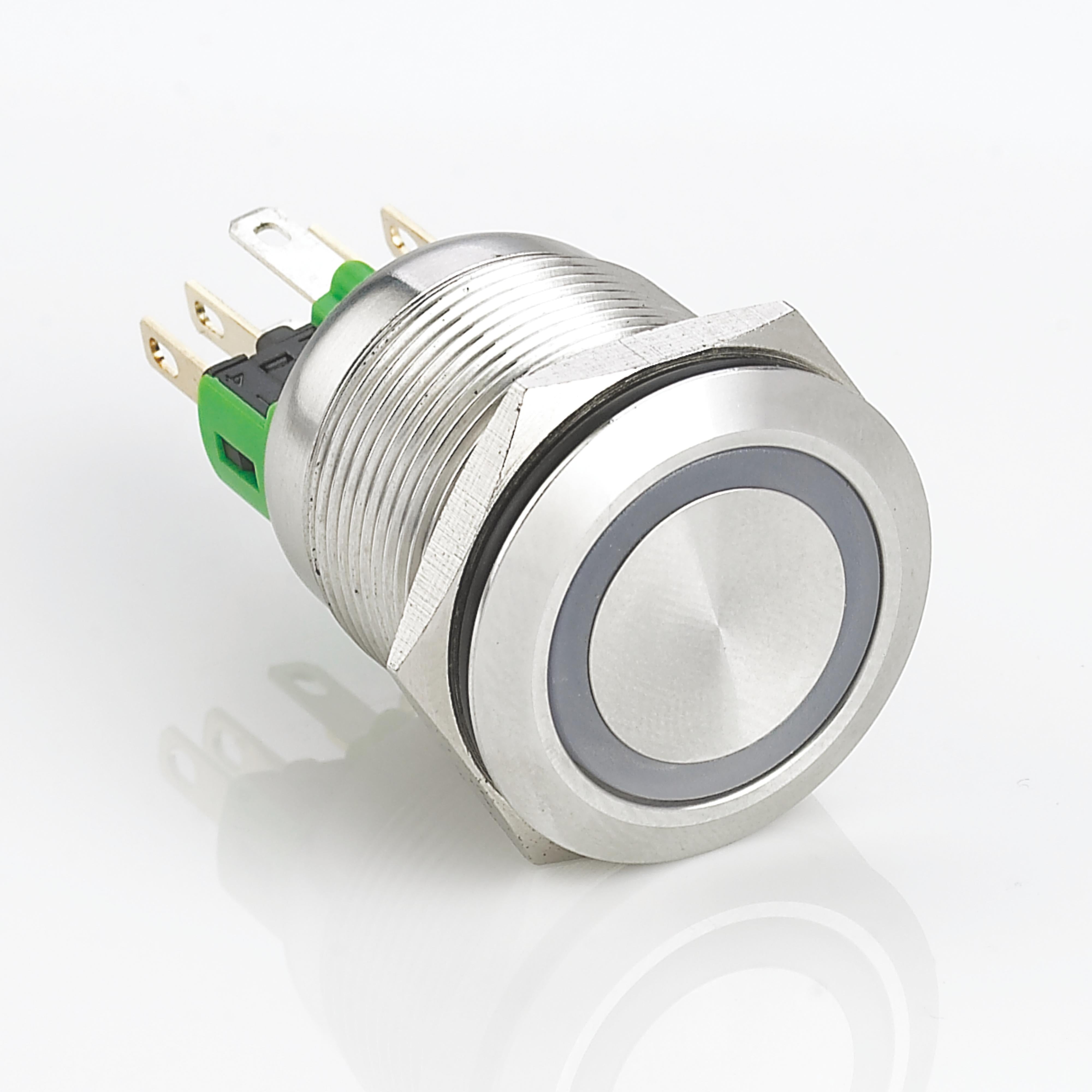

22mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed

Vendor: ANU
SKU: A22SFE-11
Availability: Out Of Stock
$4.25
$4.25
Rated Voltage: AC/DC 6V
LED Color: Red
Subtotal: $4.25
  • ANU Switch

Shipping

Free standard shipping on orders over $50.
Free express shipping on orders over $200.

Free Return

You have a 30-day return window.
22mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed

22mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed

$4.25
22mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed

22mm Metal Push Button Switch Flat Head Ring LED Momentary Flat Head Stainless Steel Soldering Pin 1 Normally-Open and 1 Normally-Closed

$4.25
Rated Voltage: AC/DC 6V
LED Color: Red
Description
Description
x

Features

  • IP67 Waterproof
  • IK10 Vandal Resistant
  • Silver plating of contacts: 3u
  • Special brushed stainless steel，beautiful appearance
  • Conforms to IEC60947-5-1 and GB14048.5 standards

Contact Ratings

Rated insulation voltage 250V
Heating Current lth 3A
Rated Voltage 12V 24V 110V 220V
Rated Current AC 50/60Hz Resistive Load -- -- 5A 3A
Inductive Load -- -- 3A 2A
DC Resistive Load 5A 5A 1A 0.5A
Inductive Load 2A 2A 0.2A 0.1A
Contact Material silver-plated



Technical Parameter

Maximum Voltage 250V AC/DC
Thermal Current 3A
Minimum Applicable Load 5V AC/DC, 1mA
Terminal Style .110" Solder / Quick Connect
Operating Temperature -25° to +55°C
Operating Humidity 45 to 85% RH
Contact Resistance 50mΩ maximum
Insulation Resistance 100MΩ minimum (500V DC megger)
Vibration Resistance 10 to 55Hz, amplitude 1.2mm p-p
Electrical Life 100,000 cycles minimum (at full rated load)
Mechanical Life 1,000,000 cycles minimum
Dielectric withstand voltage 2,000V AC, 1 min. between live/dead part and terminals of different poles;
1,000V AC, 1 minute between terminals of the same pole.
Soldering Temperature 20W, 5 seconds / 260°C, 3 seconds


LED Lamp

 Lamp Type AC/DC universal LED lamp
Rated Voltage AC/DC 6/12/24/36/48/110 Volt; AC 220 Volt.
LED Color Red, Green, Yellow, Blue, White
Life 40,000 hours

* If you need a one-way DC LED lamp or other rated voltages, please contact customer service
